The X-NUCLEO-OUT11A1 is a digital-output expansion board for evaluating the ISO808 switch in combination with an STM32 Nucleo NUCLEO-F401RE or a NUCLEO-G431RB 32-bit microcontroller board. The X-NUCLEO-OUT11A1 provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the ISO808 octal high-side isolated switch.
The X-NUCLEO-OUT11A1 directly interfaces with the MCU on the STM32 Nucleo board. Galvanic isolation between the MCU and the process stage is guaranteed by the ISO808.
It is also possible to evaluate a system composed of a X-NUCLEO-OUT11A1 stacked on other expansion boards. The X-NUCLEO-OUT11A1 is equipped with Arduino® UNO R3 connectors.

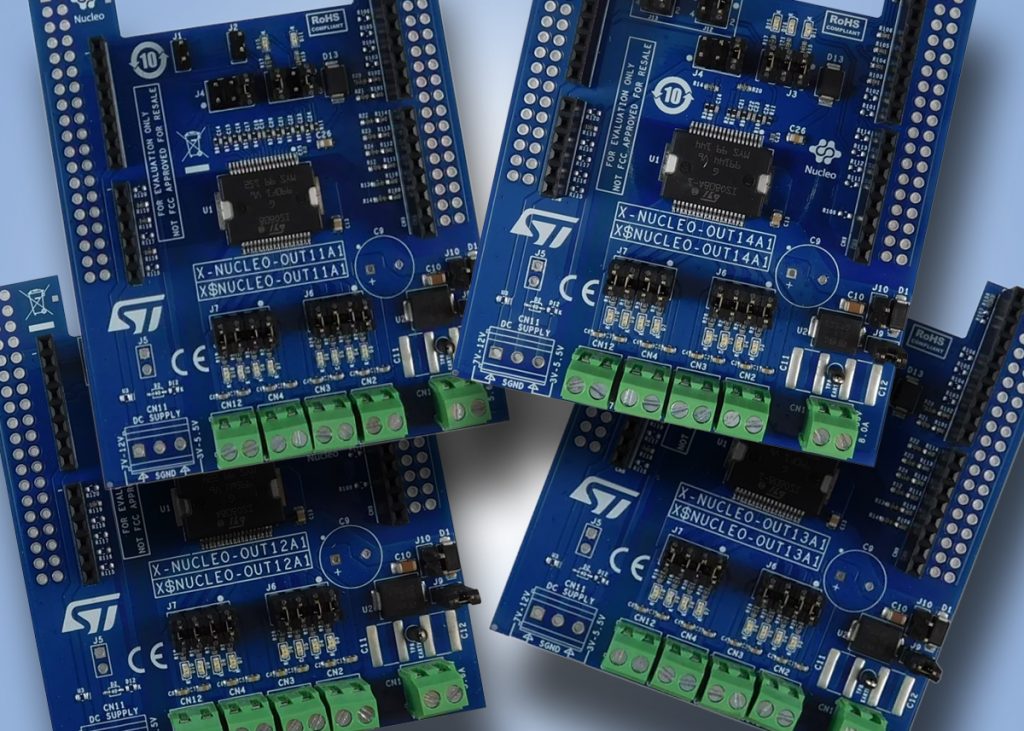

Other functionally equivalent boards support other parts in the family:
X-NUCLEO-OUT12A1
ISO808A – 0.7 A, SPI input
X-NUCLEO-OUT13A1
ISO808-1 – 1 A, separate input pin
X-NUCLEO-OUT14A1
ISO808A-1 – 1 A, SPI input
