Enhanced safe operating area from an e-mode MOSFET in a high-reliability package

The fully optimized SOA supports superior linear mode operation. Rated for 80 V and qualified for temperatures up to 175°C, the PSMN1R2-80CSE features an exceptionally low on-resistance of just 1.3 mΩ

To support the latest hot-swap controllers, the PSMN1R2-80CSE e-mode MOSFET withstands significant inrush currents during turn-on, and the low on-resistance minimizes losses, in addition to enabling optimum efficiency when the MOSFET is turned on. The high current capability of 375 A supports demanding loads in telecom systems, industrial control units, and automation backplanes, particularly those based on 48 V supply rails

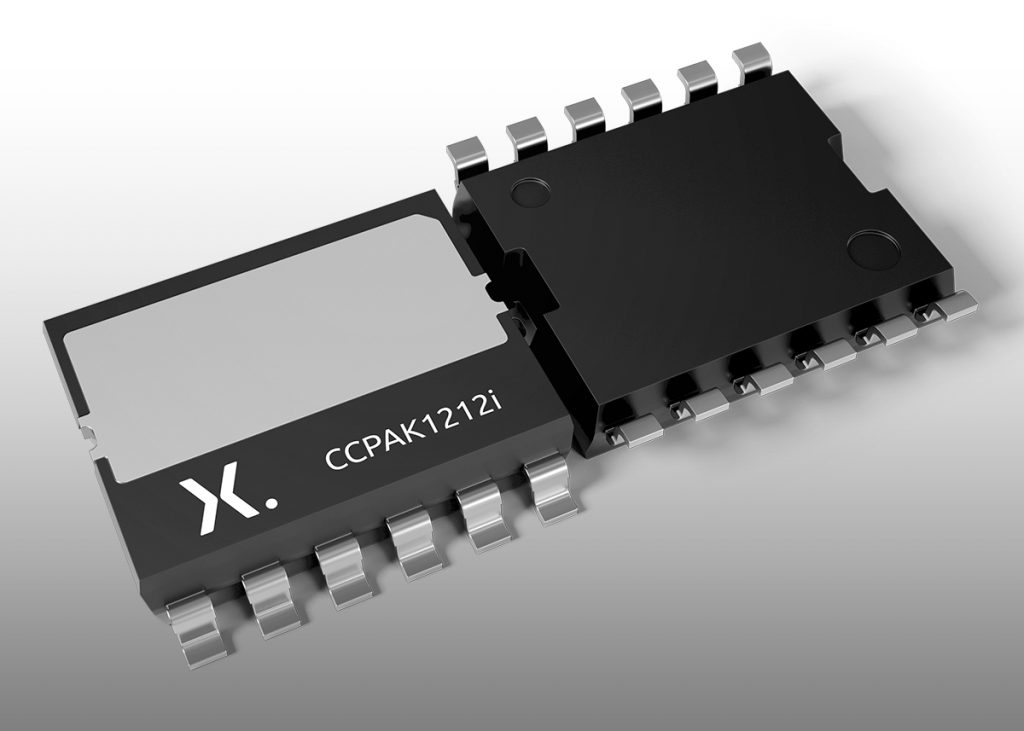

The JEDEC-standard copper-clip CCPAK1212i package has a compact 12 mm x 12 mm footprint and is top-side cooled.

The PSMN1R2-80CSE benefits applications that need to achieve highest performance and reliability.
