High-power ceramic LEDs lower board space and lift lighting expectations

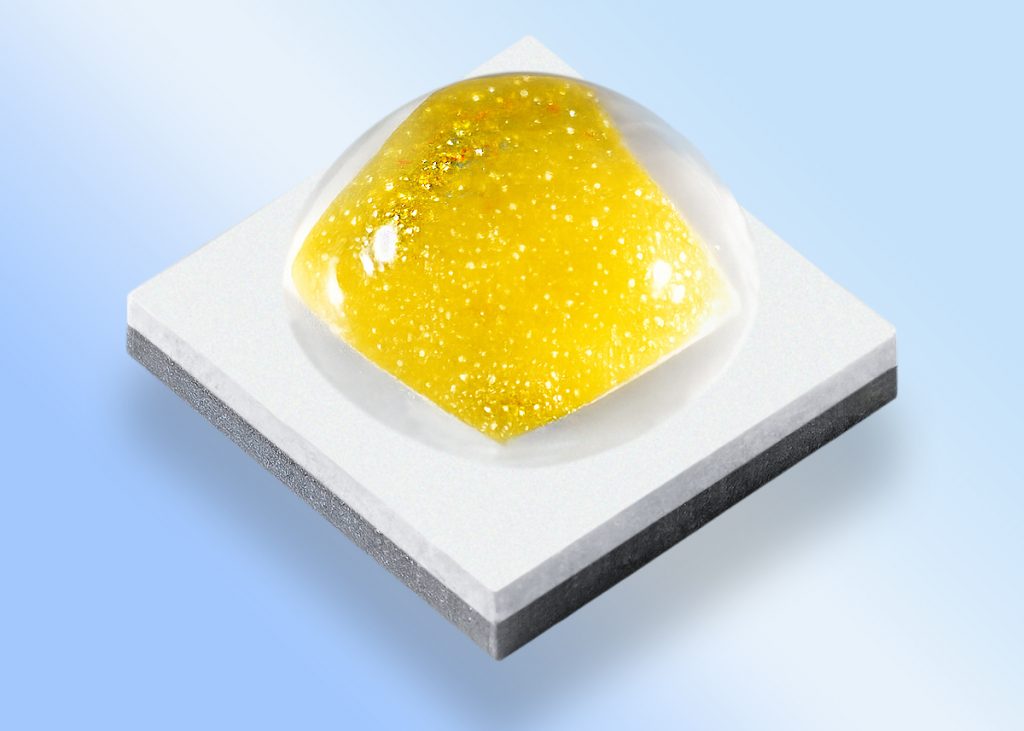

Push the boundaries of lighting performance with the high output and warm white of the NVSW219GL series of 1800K LEDs from Nichia.
Delivering efficacy improvement of up to 5%, the NVSW219GL LEDs provide a solution for street, industrial, and outdoor lighting applications.
Offered with multiple options to simplify design, the highly reliable NVSW219GL series LEDs offers high output and long life, with correlated color temperature (CCT) of 1800K and ≥70Ra color rendering index (CRI).
In a compact 3.5mm x 3.5mm footprint, these LEDs offer warm white in addition to vivid discrete colors which include blue and amber. This makes the NVSW219GL LEDs suitable for spotlights and stage lighting. The reliability of the LEDs provides a useful alternative to high-pressure sodium (HPS) lights for streetlights which must operate under harsh conditions.
For improved color uniformity there is the high-efficacy domed NVSW219GL or NVSW519A-V1 LEDs, and super high luminance is achieved by the domed NVSW719AC, which is the first LED to use multiple light-emitting layers. This feature enables the diameter of the LED to be reduced to provide the compact 35mm x 35mm footprint.
Superior light uniformity over any angle is offered by the NVSW219GF which has no dome, and super high luminance is provided by the NVSW719AC which has the same 3.5mm x 3.5mm footprint.
