Industrial fuse features bolt-down terminals for secure installation

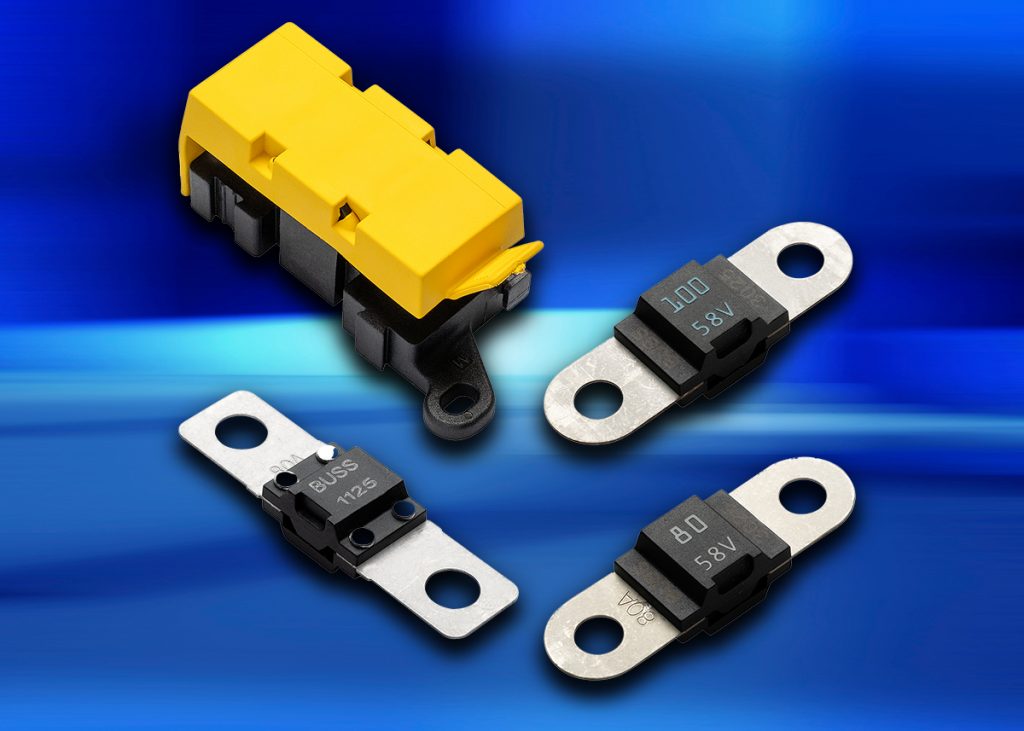

The colour-coded BAT1 family of bolt-down fuses from Eaton gives protection of up to 200A in high-power applications, in addition to enabling robust mounting and simple replacement.
The BAT1 family of bolt-down fuses provides reliable and efficient over-current protection for high-power applications, offering current ratings from 30A to 200A to accommodate a wide range of electric power, industrial and transport applications up to 58V. The BAT1 fuses have industry-leading breaking capacity of 2kA at 32V and 1kA at 58V.
The bolt-down design used in conjunction with the HBAT1-101 holder makes installation and maintenance simple while maintaining a secure connection even when exposed to shock or vibration. The compact fuse footprint of 48mm x 12mm enables designers to create space-efficient designs without compromising on protection.
