Multi-voltage crystal oscillators streamline inventory across product portfolios

Every ECS-2520MV oscillator from ECS Inc is compatible with battery power supplies and with fixed input voltages of 1.8 V, 2.5 V, 3.0 V or 3.3 V, and offers high timing precision.

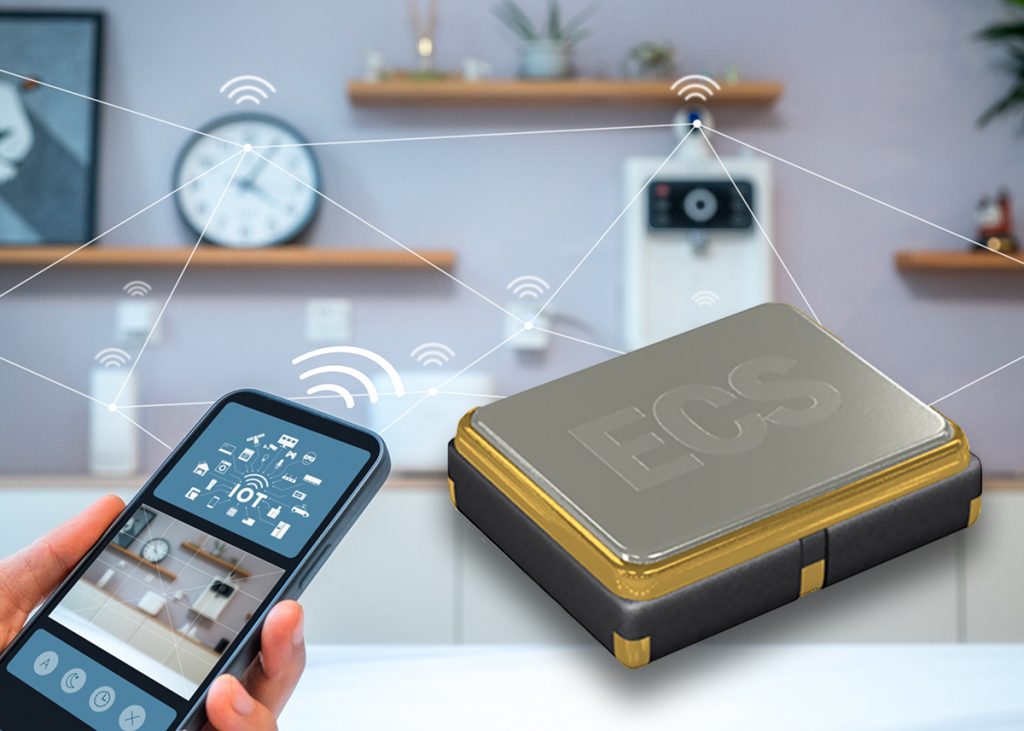

ECS Inc has extended the MultiVolt™ family with the ECS-2520MV low-power, fixed-frequency crystal oscillators.

Housed in a surface-mount package measuring just 2.5 mm x 2.0 mm x 0.8 mm, the ECS‑2520MV are ideal for space-constrained applications in the IoT and consumer device markets. The oscillators are available in a range of fixed frequency options from 1 MHz to 160 MHz.

MultiVolt oscillators operate over a voltage range of 1.6 V to 3.6 V, and on a static power supply compatible with power rails at 1.8 V, 2.5 V, 3.0 V or 3.3 V. This gives designers the flexibility to support multiple platforms or end product designs with a broad offering of timing devices. The MultiVolt ECS-2520MV enables customers to use the same oscillator for many designs, reducing qualification requirements and streamlining inventory holdings.

MultiVolt oscillators offer precision performance, producing less than 1 ps of phase jitter. The oscillators also feature lower power consumption than MEMS oscillators at a lower price point.
