Scalable small centerline connectors support more compact industrial control and motion PCBs

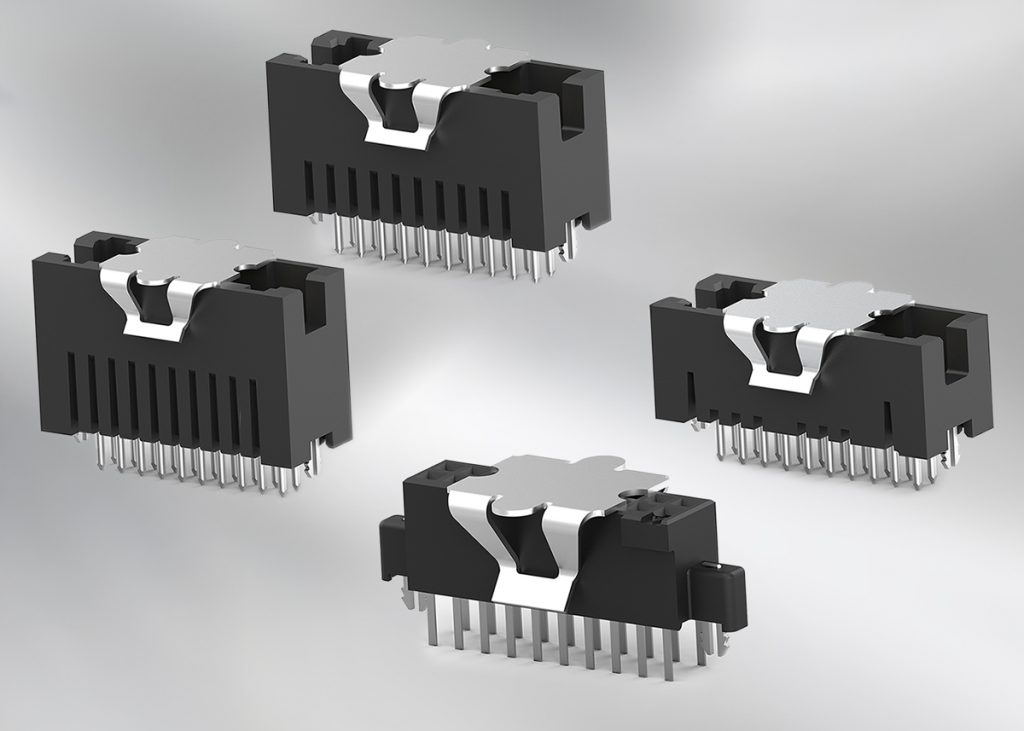

The AMPMODU family of small centerline connectors from TE connectivity, with a 1.0mm centerline, offers up to 85% space savings compared to standard connectors, enabling smaller industrial control systems without sacrificing signal integrity.
The AMPMODU family of small centerline connectors are built to serve as the primary board-level interconnect platform. With a current rating of up to 1A per contact and an operating voltage of 30V ac, the connectors are versatile and fit for a wide variety of industrial applications such as motor controllers, programmable logic controllers (PLCs), and I/O modules.
AMPMODU features a modular design with multiple pitches, and a dual-beam contact structure that can be scaled. The connectors offer up to 100 positions with two plating options and 1.0mm centerline to serve a range of applications, and are vibration resistant to maintain reliability under rough conditions.
TE Connectivity supplies a range of products that complement AMPMODU, such as:
- Micro-MaTch™ contact system engineered to prevent fretting corrosion for low-level signal connections
- ENTRELEC® DIN-rail terminal blocks to provide an interface between control electronics and peripherals
