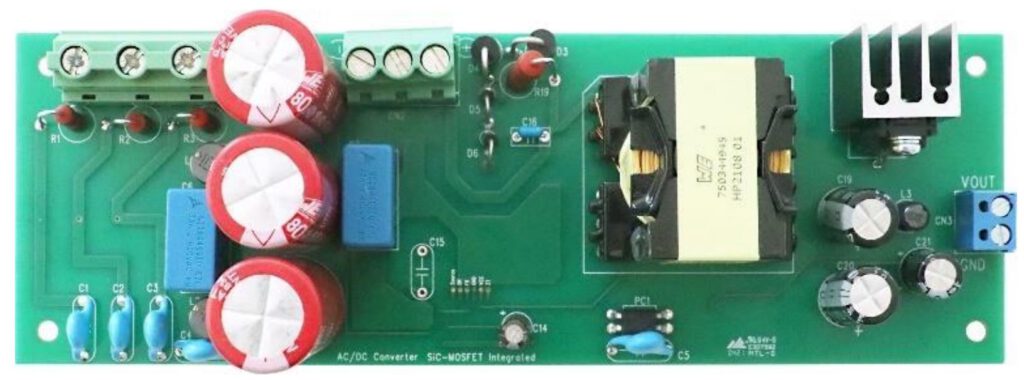

Built-in SiC MOSFET Isolated Fly-back Converter QR method Output 48 W 24 V
The BM2SC12xFP2-LBZ series is a quasi-resonant AC/DC converter that provides an optimum system for all products which has an electrical outlet. Quasi-resonant operation enables soft switching and helps to keep the EMI low.
The BM2SC12xFP2-LBZ guarantees long time support in industrial market.
Quasi-resonant operation enables soft switching and helps to keep the EMI low. This IC can be designed easily because it includes the 1700V SiC (Silicon-Carbide) MOSFET. Design with a high degree of flexibility is achieved with current detection resistors as external devices. The burst operation reduces an electric power at light load.
BM2SC12xFP2-LBZ series includes various protection functions, such as soft start function, burst operation function, over current limiter per cycle, over voltage protection, overload protection. FB OLP is Auto Restart type, VCC OVP is Latch type.
Click below to request similar boards:
BM2P060MF-EVK-001 isolated PWM flyback converter board, 24 V 1.67 A, 40 W
BM2P016T-EVK-003 isolated PWM flyback converter board, 48 W, 12 V
