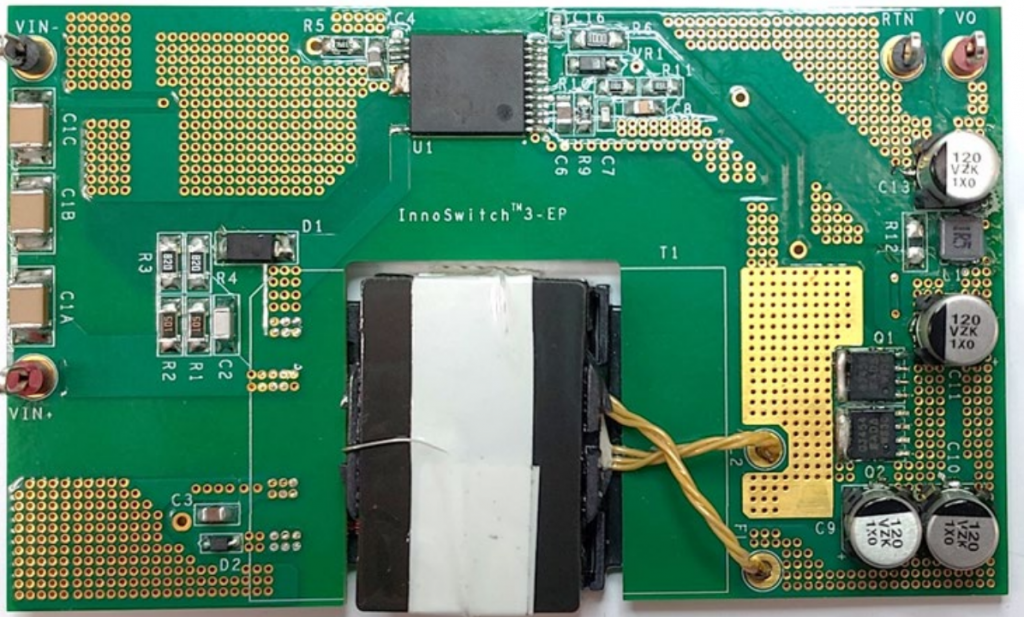

35 W Isolated Flyback Power Supply Using 1700 V InnoSwitch3-EP INN3647C-H606
• High input voltage: up to 1000 VDC
• High ambient temperature operation: 85 ºC with continuous 30 W output at 1000 VDC input
• 1700 V InnoSwitch3-EP – industry’s first 1700 V rated power IC with isolated, safety rated integrated feedback
• Built-in synchronous rectification for >92% efficiency
• All the benefits of secondary-side control with the simplicity of primary-side regulation
• Insensitive to transformer variation
• Extremely fast transient response independent of load timing
• 5% output voltage tolerance across, load, line and temperature
