New isolated gate driver optimized for GaN power switches

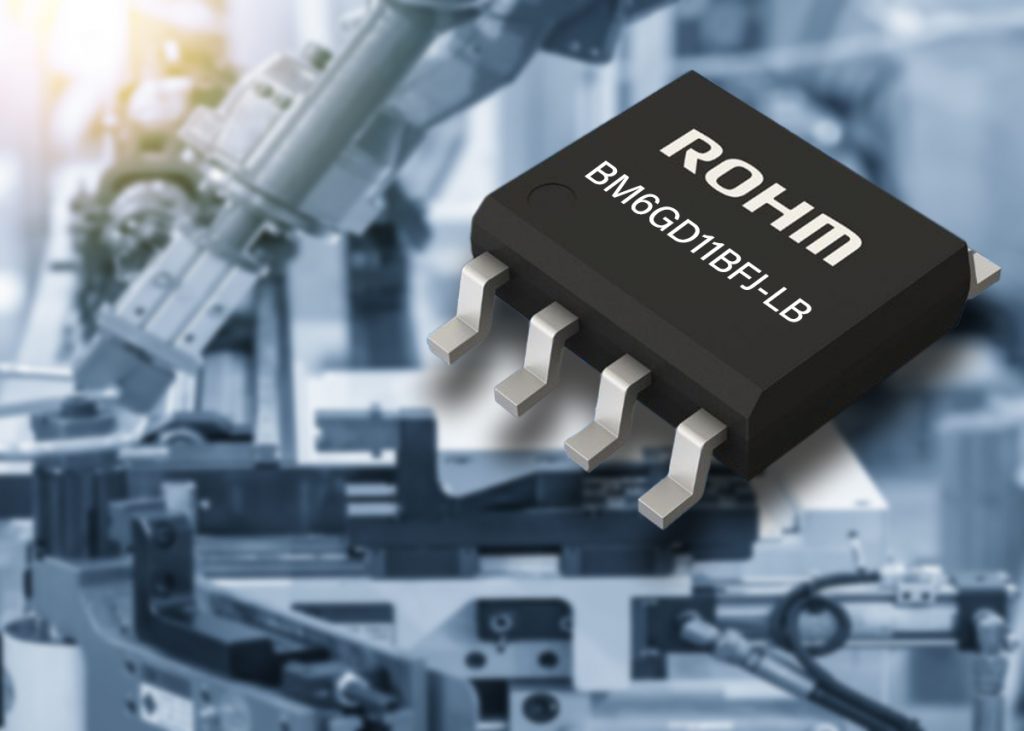

The BM6GD11BFJ-LB from ROHM provides high isolation to protect the control circuit from the high voltages handled by the latest gallium nitride (GaN) power switches in applications such as server power supplies and industrial motors.
ROHM Semiconductor has launched the BM6GD11BFJ-LB, an isolated gate driver IC which offers the high-speed operation required to drive today’s fast-switching GaN high electron-mobility transistors (HEMTs).Â
The BM6GD11BFJ-LB is based on on-chip isolation technology developed by ROHM Semiconductor which reduces parasitic capacitance, enabling stable high-frequency operation at up to 2MHz. Fast-switching operation not only contributes to greater energy efficiency, but also reduces the power circuit’s mounting area by enabling the use of smaller inductors and capacitors.Â
Safe signal transmission is achieved by isolating the gate driver IC from the control circuitry during switching operations that involve rapid cycles of voltage rises and falls. The BM6GD11BFJ-LB provides 2.5kVrms of isolation.
The BM6GD11BFJ-LB also provides high common-mode transient immunity of 150V/ns, 1.5 times higher than that of competing products, which helps to prevent malfunctions caused by the high slew rates typical of GaN HEMT switching. The minimum pulse width has also been reduced to just 65ns, 33% less than that of conventional products.
