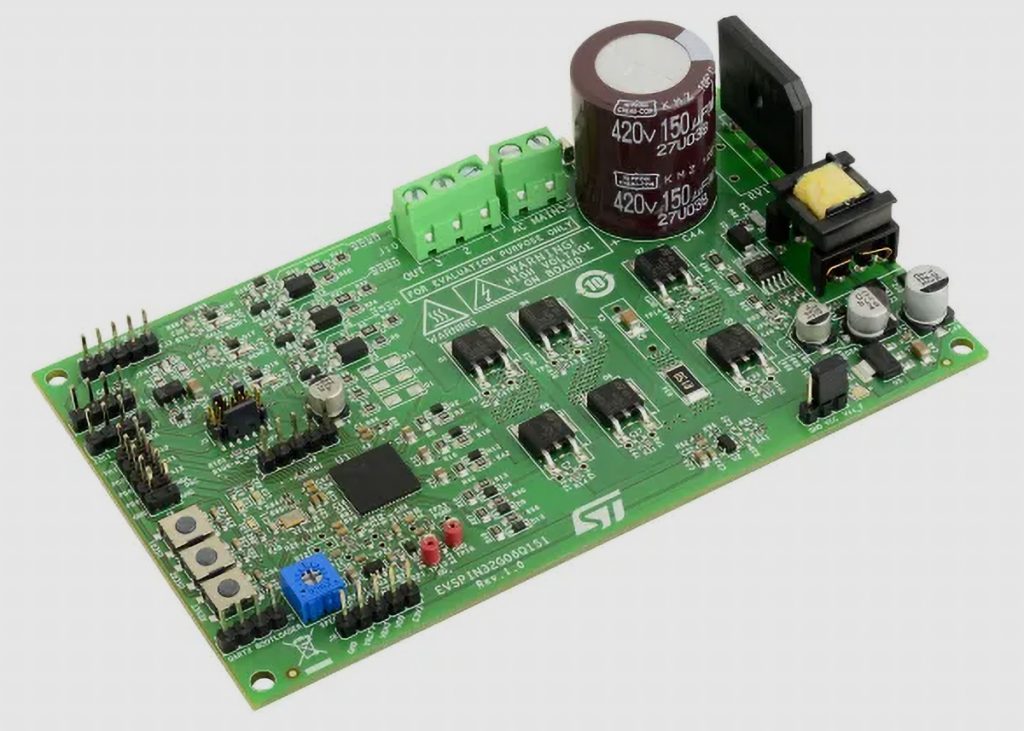

The EVSPIN32G06Q1S1 board from STMicroelectronics is a complete three-phase inverter based on the STSPIN32G0601 controller, which integrates a three‑phase 600 V gate driver and an Arm® Cortex®-M0+ microcontroller. It is suitable for loads up to around 250 W, and drawing a 1 Arms phase current.
The power stage features STGD6M65DF2 IGBTs, but can be populated with any IGBT or power MOSFET in a DPAK or powerFLAT 8×8 HV package. The board has a single-shunt sensing topology, and supports both field-oriented control and six‑step control algorithms in either sensored or sensorless mode. This means that the board can drive permanent magnet synchronous motors (PMSMs) and brushless dc (BLDC) motors.
The evaluation board is compatible with a wide input-voltage range from 35 V ac/50 V dc to 280 V ac/400 V dc. It includes a power-supply stage based on the VIPER06XS offline power converter in flyback configuration to generate the +15 V and +3.3 V supply voltage required by the application.
Other features are:
- Over-current threshold set to 2.8 A peak
- Smart shutdown over-current protection
- Digital Hall sensors and encoder input
- Bus-voltage sensing
- External connection through STLINK-V3SET
- Buttons and trimmer for user interfacing
