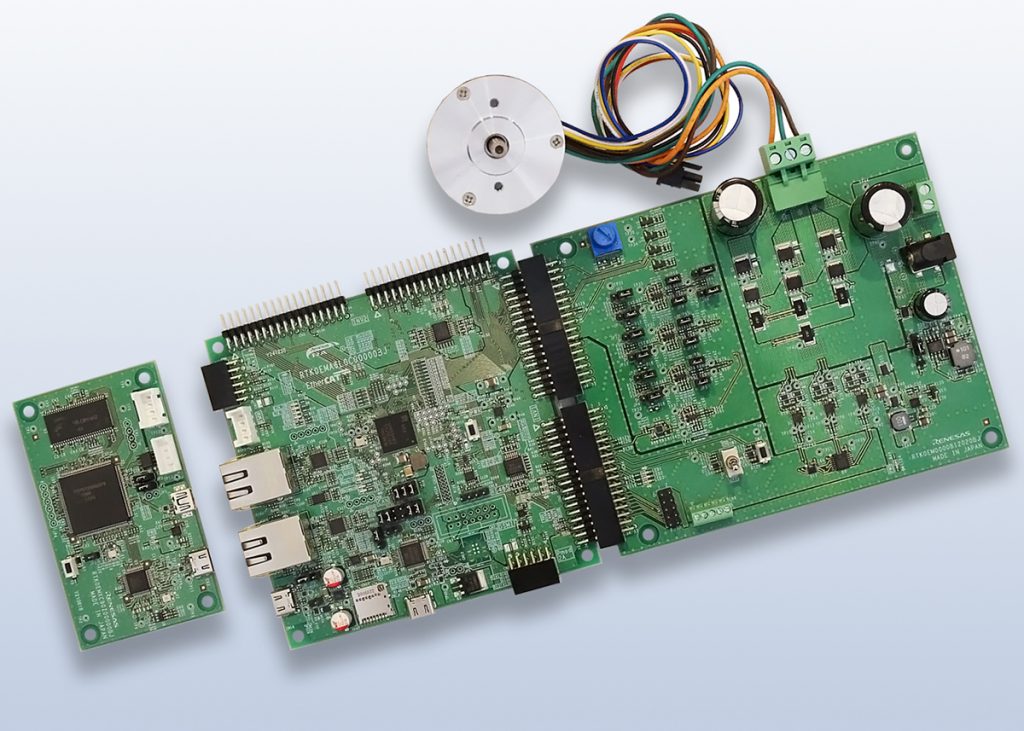

The MCK-RA8T2 development kit from Renesas is intended for evaluation of permanent-magnet synchronous motors (PMSMs) and other three-phase brushless loads driven by RA8T2 microcontrollers. The kit combines an RA8T2 CPU board (MCB-RA8T2), a low-voltage inverter board (MCI-LV-1), a PMSM, and accessories such as cables and stand-offs, so that engineers can exercise typical control schemes on a ready-made power stage.
An onboard debugger supports direct programming of the RA8T2 from a PC without an external probe. Connectors for Hall sensors, encoders and communication interfaces allow a range of feedback and host-control arrangements to be assessed. Sample code supports rapid bring-up, parameter tuning and waveform observation, helping developers to characterize the behavior of RA8T2-based control and networking operations in their intended industrial applications.
Key features include:
- 1-, 2- and 3-shunt current sensing schemes for PMSM control
- Integrated over-current and short-circuit protection
- Supports Renesas Motor Workbench
- Optional isolated communication via companion MC-COM board
- Inverter board rated for operation up 48V
