RZ/G2LC Evaluation Board Kit

This evaluation board kit is ideal for evaluating RZ/G2LC.

Click here to request the RTK9744L23S01000BE RZ/G2L Evaluation Board Kit

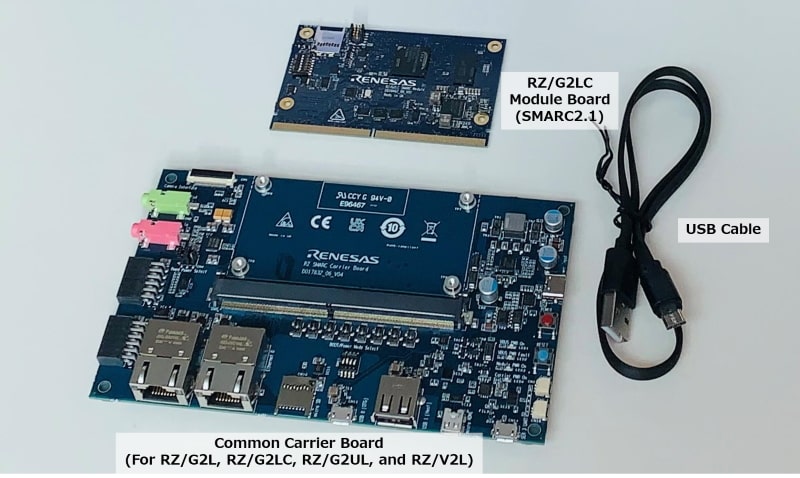

The RZ/G2LC Evaluation Board Kit consists of a module board (SOM) and a carrier board. The carrier board can be commonly used with RZ/G2L, RZ/G2UL, and RZ/V2L modules (SOM) prepared according to the SMARC v2.1 standard. This allows you to experience seamless and flexible evaluation between these devices.

Device: RZ/G2LC (R9A07G044C22GBG)
- Cortex-A55 Dual, Cortex-M33, Non-Secure
- BGA361pin, 13mmSq body, 0.5mm pitch
Module Board Function
- DDR4 SDRAM: 1GB × 1pc
- QSPI flash memory: 512Mb × 1pc
- eMMC memory: 64GB × 1pc
- The microSD card slot is implemented and used as an eSD for boot.
- 5-output clock oscillator “5P35023” implemented
- PMIC power supply “RAA215300” implemented
Carrier Board Function
- The FFC/FPC connector is mounted as standard for connection to high-speed serial interface for camera module.
- The Micro-HDMI connector via DSI/HDMI conversion module is mounted as standard for connection to high-speed serial interface for digital video module.
- The Micro-AB receptacle (ch0: USB2.0 OTG) and A receptacle (ch1: USB2.0 Host) are respectively mounted as standard for connection to USB interface.
- The RJ45 connector is mounted as standard for software development and evaluation using Ethernet.
- The audio codec is mounted as standard for advance development of audio system. The audio jack is implemented for connection to audio interface.
- The CAN connector is implemented for connection to CAN-Bus interface.
- The Micro-AB receptacles are implemented for connection to asynchronous serial port interface.
- The microSD card slot and two sockets for PMOD are implemented as an interface for RZ/G2L peripheral functions.
- For power supply, a mounted USB Type-C receptacle supports the USB PD standard.
