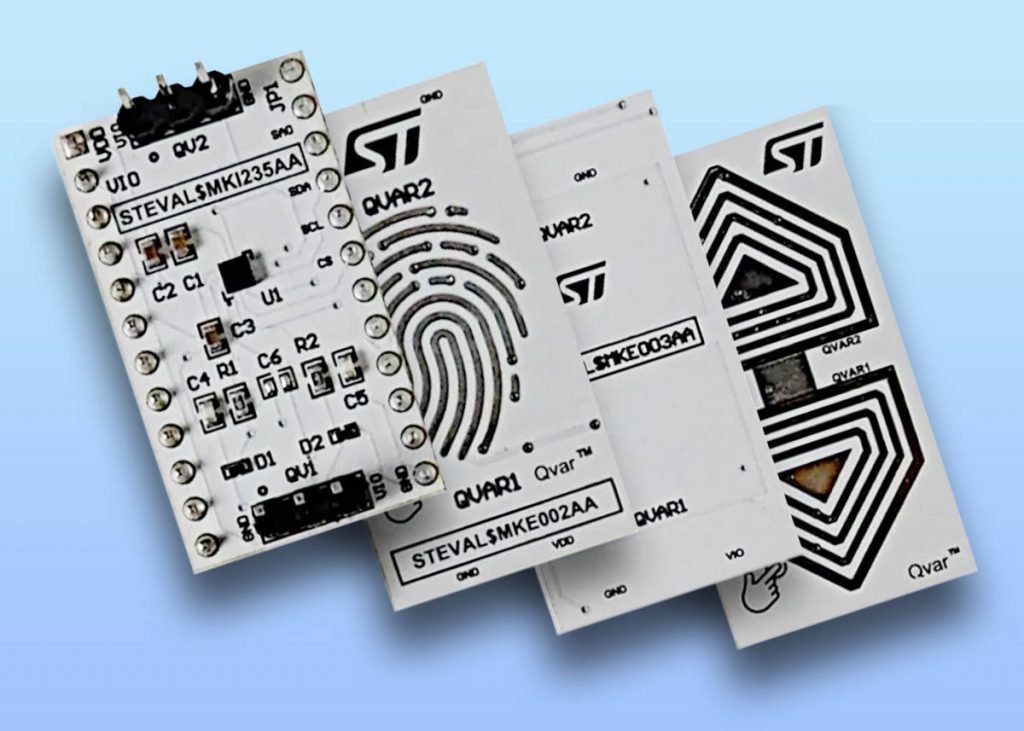

The STEVAL-MKI235KA evaluation kit is based on the LIS2DUXS12 inertial module with a Qvar electrostatic sensor and three different electrodes. It is compatible with the STEVAL-MKI109V3 MEMS sensing motherboard.
The kit provides the complete LIS2DUXS12 pinout and comes ready-to-use with the required decoupling capacitors on the power-supply line.
The STEVAL-MKI109V3 motherboard includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface, Unico-GUI, or dedicated software routines for custom applications.
It is also possible to plug the board into an X-NUCLEO-IKS01A3 expansion board.
