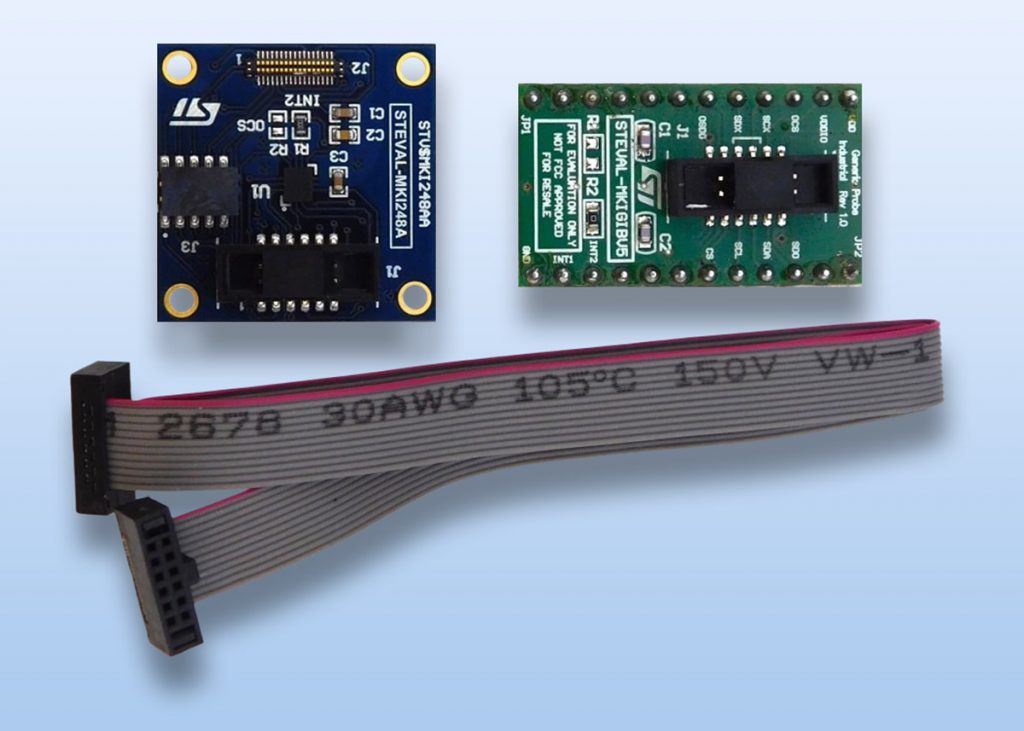

The STEVAL-MKI248KA kit from STMicroelectronics consists of a generic DIL24 adapter board, the STEVAL-MKIGIBV5, a flat cable, and a square PCB on which is mounted the ISM6HG256X six-axis IMU.
The sensor is soldered precisely in the center of the square PCB, making it easy to mount the board on prototype equipment.
STEVAL-MKIGIBV5 board can be plugged into a standard DIL-24 socket. The kit supports the complete ISM6HG256X pin-out, and comes ready to use with the required decoupling capacitors on the power-supply line.
The kit is complemented by the STEVAL-MKI109D evaluation platform, which includes a high-performance 32-bit microcontroller: this functions as a bridge between the sensor and a PC, on which engineers can use the downloadable MEMS Studio graphical user interface, or dedicated software routines for custom applications.
