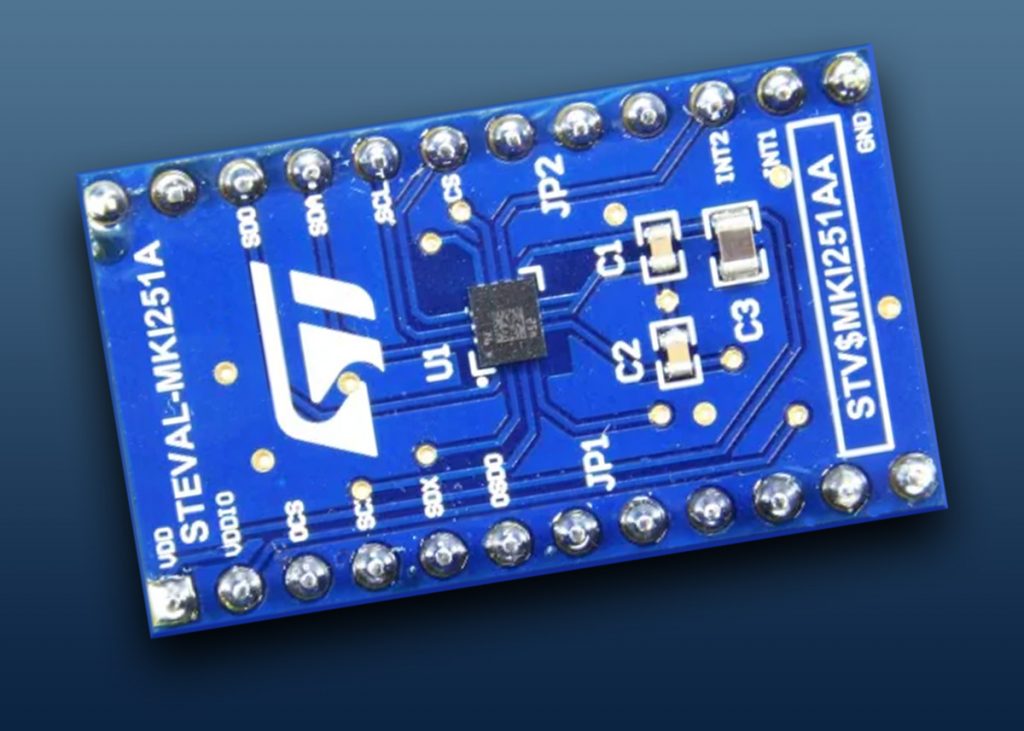

The STEVAL-MKI251A is an adapter board designed to facilitate the evaluation of the LSM6DSV320X 6-axis inertial measurement unit (IMU).
The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
The STEVAL-MKI251A can be plugged into a standard DIL 24 socket. The adapter provides the complete LSM6DSV320X pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109D evaluation platform. This includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable MEMS Studio graphical user interface, or dedicated software routines for customized applications.
The adapter board can be also plugged in other boards such as STEVAL-MKBOXPRO and X-NUCLEO-IKS4A1.
