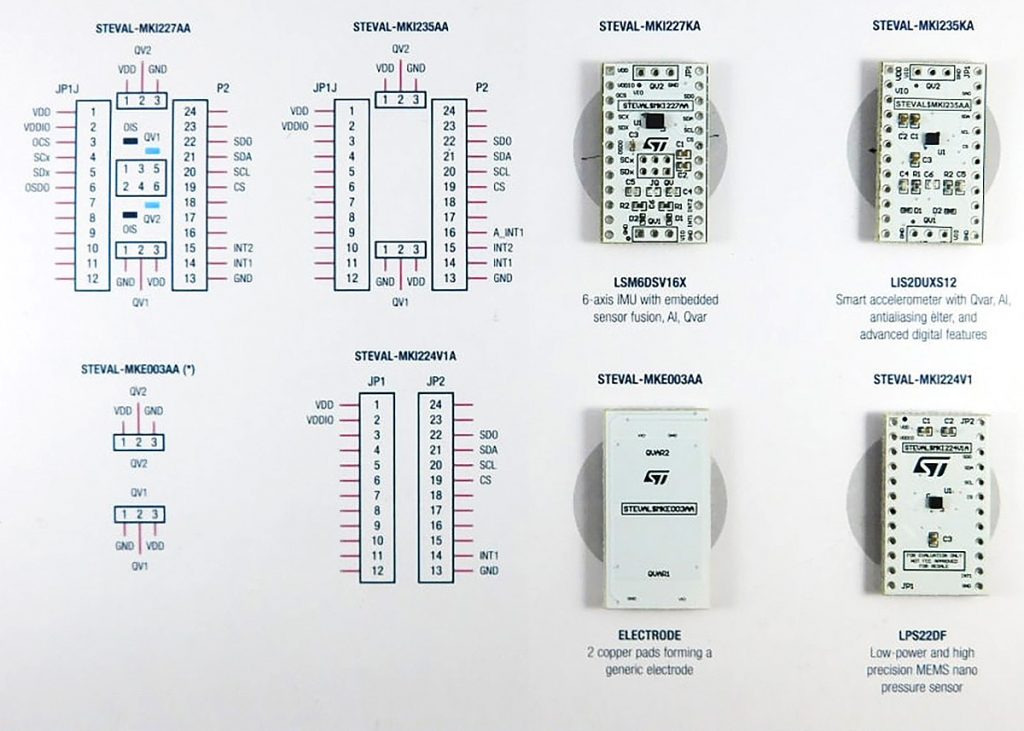

The STEVAL-MKIT04KA comprises four different adapters for DIL24 sockets: the STEVAL-MKI224V1, the STEVAL-MKI227A in the STEVAL-MKI227KA adapter kit, the STEVAL-MKI235A in the STEVAL-MKI235KA adapter kit, and the STEVAL-MKE003A in the STEVAL-MKI227KA and STEVAL-MKI235KA adapter kit.
All of the surface-mount devices are soldered on the boards. Male and female connectors must be manually soldered.
The STEVAL-MKE003A can be plugged over the STEVAL-MKI227A or the STEVAL-MKI235A board.
If the application using LSM6DSV16X is fixed, it is possible to solder a 0 ohm resistor instead of shunt in the JQ connector.
These adapters are individually supported by the STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC. On the STEVAL-MKI109V3 it is possible to use the downloadable graphical user interface of Unico-GUI or MEMS-Studio, or to use dedicated software routines for customized applications. It is also possible to plug the single board into X-NUCLEO-IKS01A3.
- User friendly LSM6DSV16X, LIS2DUXS12, LPS22DF board
- Complete LSM6DSV16X, LIS2DUXS12, LPS22DF pinout for a standard DIL 24 sockets
- Fully compatible with the STEVAL-MKI109V3 motherboard
