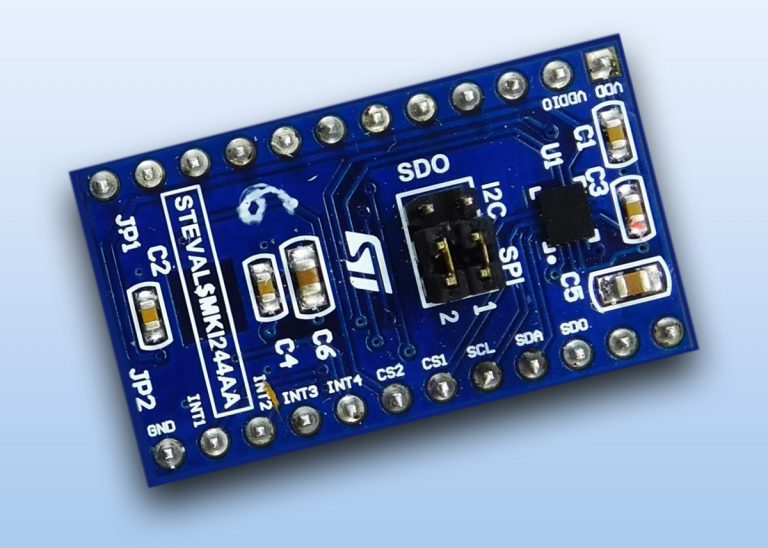

The STEVAL-MKI244A is an adapter board for a standard DIL24 socket, designed to facilitate the evaluation of the ASM330LHBG1 6-axis inertial measurement unit (IMU) in ASIL B automotive applications. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.

Plugged into a standard DIL24 socket, the STEVAL-MKI244A adapter provides the complete ASM330LHBG1 pinout and comes ready to use with the required decoupling capacitors on the VDD and VDDIO power supply lines.

This adapter is supported by the STEVAL-MKI109D evaluation platform, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable MEMS Studio graphical user interface or dedicated software routines for customized applications.

  • Complete ASM330LHBG1 pinout for a standard DIL24 socket
  • Fully compatible with the STEVAL-MKI109D evaluation platform
STMicroelectronics

The STEVAL-LLL014V1 evaluation kit features the SPC582B60E1 32-bit automotive-grade microcontroller for controlling the ALED7709 LED driver via an I2C interface. The main board can be configured and controlled via a Mini-USB connection to a PC running the STSW-LLL014GUI software. The kit also includes an LED board with four strings of 10 LEDs.

STMicroelectronics

The EV-L99LDLH32GEN board provides a way to connect the L99LDLH32 multi-channel automotive LED driver to an existing system. To connect a lighting load, it is necessary to design a specific adapter board suited to the chosen OLED panel.

Microchip

The SAM9X60 Curiosity Development Board is based on the SAM9X60D1G SiP high-performance, low-power ARM926EJ-S CPU-based embedded microprocessor (MPU) running at 600MHz.
