Microprocessor

Renesas

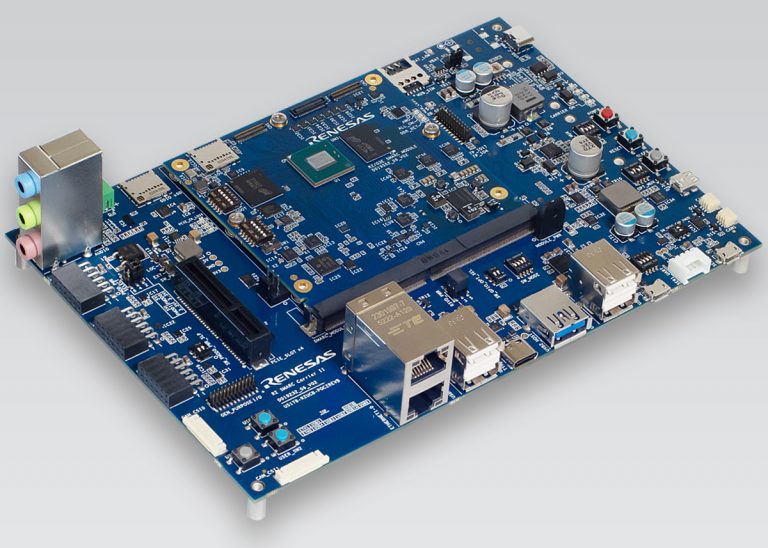

The RZ/G3E Evaluation Board Kit from Renesas, which consists of a system-on-module (SOM) board and a carrier board, is ideal for evaluating the features of the 64-bit RZ/G3E microprocessor. The module board is compatible with the SMARC v2.1 standard, and provides a reference design basis for module-based product development.

The SOM includes:

  • 4 Gbytes of LPDDR4x SDRAM
  • 16 Mbytes of QSPI Flash memory
  • 64 Gbytes of eMMC memory
  • Two MicroSD slotsĀ
  • Parallel interface
  • I3C connector
  • JTAG connector
  • 8-channel ADCĀ
  • Current monitor
Renesas

The EK-RZ/A3M evaluation kit enables users to easily evaluate the features of the RZ/A3M microprocessor from Renesas. The kit includes an EK-RZ/A3M board, a 5″ 720 px x 1,280 px LCD MIPI graphics expansion board, and USB cables, providing resources for the development of high-definition human machine interfaces (HMIs). The board also supports a camera input through a USB interface.Ā



Microchip

The Curiosity PIC64GX1000 Kit ES evaluation kit from Microchip enables designers to immediately get started using the PIC64GX1000 microprocessor, which features four 64-bit RISC-V cores and is capable of simultaneously running a real-time operating system or bare-metal system alongside a LinuxĀ® OS.

The Curiosity PIC64GX1000 evaluation kit is well suited for testing MIPI CSI-2Ā®, HDMI, SPI, I2C, QSPI, DDR, microSD and Gigabit Ethernet applications thanks to the rich set of breakout connectors and headers. 1 Gbyte of DDR4 memory is available in addition to the included 32 Gbyte SanDisk Ultra microSD UHS-I card for booting the Linux OS.

The PIC64GX Curiosity evaluation kit comes in a 4ā€ x 4ā€ form factor. The debug interface is provided via a USB Type-CĀ® interface, and a USB 2.0 cable is included as part of the kit.

Renesas

This evaluation board kit is ideal for evaluating RZ/G3S. The RZ/G3S Evaluation Board Kit consists of a module board (SOM) and a carrier board. The module board complies with the SMARC v2.1 standard.

Renesas

The RZ/V2H-EVK AI MPU evaluation kit for the RZ/V2H series of vision AI microprocessors from Renesas includes a CPU board and an expansion board. The kit supports standard RZ/V2H software packages and enables easy implementation of software development tasks such as low-power AI inference and video streaming.Ā

Additionally, this evaluation kit supports optional functions such as an image signal processor, 3D graphics engine, and trusted secure IP.
