The NCN26010XMNEVK from onsemi demonstrates the basic functionality of the NCN26010 Ethernet controller and transceiver, and doubles as a laboratory tool to allow engineers to develop embedded software drivers for the NCN26010 device.
The evaluation kit consists of the NCN26010BMNEVB bridge board and the NCN26010XMNEVB 10BASE-T1S evaluation board.

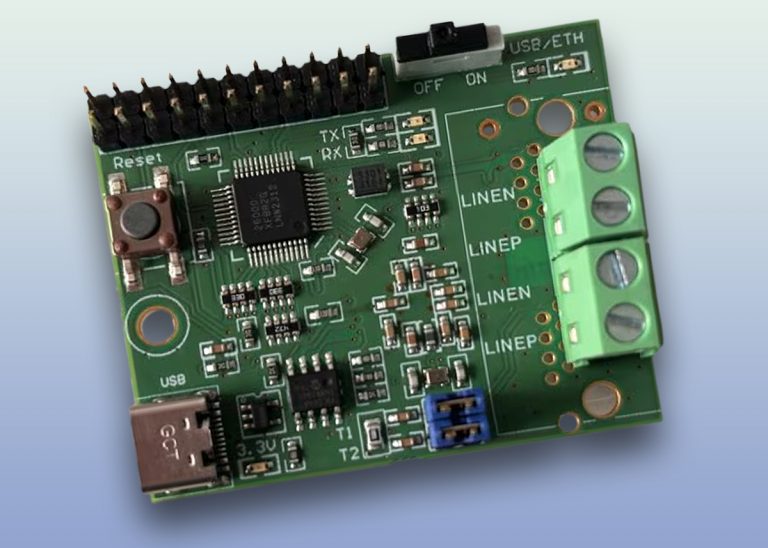

The NCN26000XMNEVB board for the onsemi NCN26000 10BASE-T1S Ethernet transceiver enables developers to evaluate the device’s performance in networks connected by unshielded twisted-pair cable.Â
This board provides a connection to third-party microcontroller evaluation boards which support a Clause 4-compliant MII interface. Additionally, it includes a USB Type-C® connector, facilitating connection to any PC based on a Linux® or Windows operating system. This enables PCs to join a 10BASE-T1S multi-drop network. The board can also be used to monitor traffic on the multi-drop segment by running the Wireshark network protocol analyzer on a PC.
The EZ-USBâ„¢ FX20 Development Kit is a hardware and software development platform for the CYUSB4022-FCAXI, an EZ-USB FX20 USB peripheral controller which supports data-transfer rates up to 20 Gbits/s.Â
EZ-PDâ„¢ PMG1-B1 is USB-C PD controller + buck-boost controller + battery charger + MCU + individual cell monitoring and protection in a single chip.
The CYUSB3KIT-003 EZ-USBâ„¢ FX3 SuperSpeed explorer kit is an easy-to-use development platform which enables developers to add USB 3.0 device functionality to any system. The kit helps engineers to develop solutions based on the CYUSB301x family of EZ-USB FX3 USB 3.0 peripheral controllers.
The LAN9383 Evaluation Board provides a convenient and compact evaluation platform for a seven-port, safe and secure family of time-sensitive networking (TSN) Gigabit Ethernet switches. This evaluation board comes with five integrated 100BASE-T1 PHYs and an RGMII port that connects to a KSZ9131 PHY: this enables a standard 100/1000BASE-T uplink. An onboard LAN8672 10BASE-T1S PHY supports a multi-drop 10BASE-T1S network with up to eight nodes.Â
Functional safety-ready, the board includes an Arm® Cortex®-M7 core-based sub-system with integrated Flash code memory.
