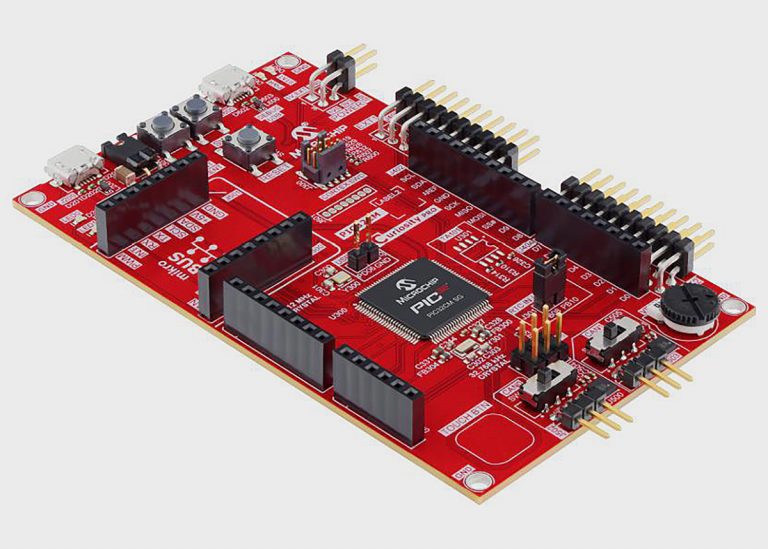

The PIC32CM GC00 Curiosity Pro is a Microchip Technology development board featuring a 72MHz Arm® Cortex®-M23 microcontroller, requiring no additional hardware to get started.

The development board is designed to make it easy to prototype and evaluate applications based on the PIC32CM SG00/GC00 microcontroller family. The board comes ready to use out of the box, with an integrated MPLAB PICkit On-Board 4 debugger handling programming and real-time debugging over a single USB connection. Expansion options are plentiful, with Arduino UNO R3, mikroBUS, and Xplained Pro extension headers all present, making it straightforward to connect shields, click boards, and Microchip expansion boards. A solid set of onboard peripherals includes dual CAN transceivers, a precision voltage reference, touch and tactile buttons, user LEDs, and a potentiometer. This variety means there is plenty to work with before reaching for any expansion hardware at all.



Microchip

The EV18H47 (MCS MCLV-48V-300W) inverter board provides a platform for evaluating and prototyping motor control designs using the dsPIC33AK family. The board is designed to interface with motor control dual-in-line modules (DIMs) such as the EV67N21A, which houses the dsPIC33AK512MC510 DSC.

Microchip

Digital power plug-in module (DP PIM) demo board for dsPIC33AK digital signal controllers

The dsPIC33AK512MPS506 Digital Power Plug-In Module (DP PIM) is compatible with a range of power boards to demonstrate the dsPIC33AK512MPS506 digital signal controller (DSC).

The demonstration board directly plugs into the DM330029 digital power development board, the DV330101 low-power FPC development kit, and the EV84C64A interleaved LLC converter development board.

The DP PIM accesses the dsPIC33AK512 analog inputs, the digital-to-analog converter (DAC) output, the pulse-width modulator (PWM) outputs and the general-purpose input and output (GPIO) ports.



  • dsPIC33AK512MPS506 32-bit digital signal controller in 64-pin TQFP package
  • ICSP™ programming header
  • On-board LDO with Power Good (PG) function
  • MCP2221A USB to UART/I2C serial converter
  • USB Type C connector
  • Board edge connection interface for analog inputs/outputs, PWM outputs and GPIO ports.
  • Analog input with op amp buffer via test point loop connector, can be used for Bode plot measurements
  • Support for complete dsPIC33AK512MPS506 DSC family
Microchip

The EV99F34A evaluation board from Microchip is based on its PD77718 power-over-Ethernet (PoE) manager and PD77010 PoE controller.



Operating in controller mode using the PD77010, the EV99F34A board demonstrates eight IEEE 802.3bt 2-pair ports using the PD77718T3, and eight IEEE 802.3bt 4-pair ports using two PD77718T4 devices. The evaluation system provides designers with a suitable environment for evaluating the performance and implementation of these PoE managers and controller. The firmware supplied by Microchip supports both 4-pair and 2-pair operation.

Key features:

  • IEEE 802.3af/at/bt Type 4 standard compliant
  • Switch-domain USB-C® interface to be connected to a PC with Microchip GUI
  • PoE controller manual reset and disable ports
  • LED status indication for all ports
  • Single power source
  • Operating-temperature range: 0°C to 40°C
Microchip

The ATA6847 evaluation board provides a fully assembled hardware platform for evaluating and demonstrating the motor drive capabilities of the ATA6847 gate driver system basis chip (SBC) from Microchip.

Microchip

The SAMD21 Machine Learning evaluation kit from Microchip features a 32-bit microcontroller, motion sensor, temperature sensor and light sensor, to enable designers to collect data for training and creating machine learning models.
