The MP2797 evaluation kit includes an MP2797 evaluation board, a USB communication adaptor, and a PC-based graphical user interface (GUI) for evaluating the MP2797.
Monolithic Power Systems
Monolithic Power Systems
The Monolithic Power Systems EVQ5850-J-00A evaluation board demonstrates the capabilities of the MPQ5850, a 36 V smart diode controller with reverse protection.
The MPQ5850 diode controller can drive an external N-channel MOSFET to replace a Schottky diode for reverse input protection. The 20 mV ultra-low dropout minimizes power loss and enables a low minimum input voltage, which makes the MPQ5850 well-suited to cold-crank conditions in automotive applications.
The 4 μA shutdown current also makes the MPQ5850 ideal for battery-powered applications. The ultra-fast transient response meets the requirements of the ISO16750 standard.
The EVQ5850-J-00A board is fully assembled and tested.
Monolithic Power Systems
The EVQ6615-QK-00A is an H-bridge dc motor driver evaluation board featuring the MPQ6615-AEC1 IC, which operates from an input voltage of up to 40 V.
The H-bridge consists of four N-channel power MOSFETs. An internal charge pump generates the gate driver supply voltages for the high-side MOSFETs, and a trickle charge circuit maintains sufficient gate driver voltages for 100% duty cycle operation.
The current flowing through the two Sx outputs is sensed via the internal current-sensing circuits. Each phase has an Output pin which sources or sinks a current proportional to each phase’s output current. Only the current flowing through the low-side MOSFET is sensed. This current is sensed in both the forward and reverse directions.
Internal safety features include over-current protection, under-voltage lockout protection, and thermal shutdown. The input control signals for the MPQ6615-AEC1 are applied through the connector on the board.
The MPQ6615-AEC1 can be used to drive brushed dc motors, door lock and latch motors, and seat actuators.
Monolithic Power Systems
The EVM3515-QV-02A is an evaluation board for MPM3515, a synchronous rectified, step-down Mini-Module regulator with built-in power MOSFETS, inductor and two capacitors.
Monolithic Power Systems
The EVM54304-MN-01A is an evaluation board designed to demonstrate the capabilities of the MPM54304, a four-channel output power module with an I2C interface. Channels 1 and 2 can deliver up to 3A (or a shared 6A) of continuous output current. Channels 3 and 4 can deliver up to 2A (or a shared 4A) of continuous output current.
Monolithic Power Systems

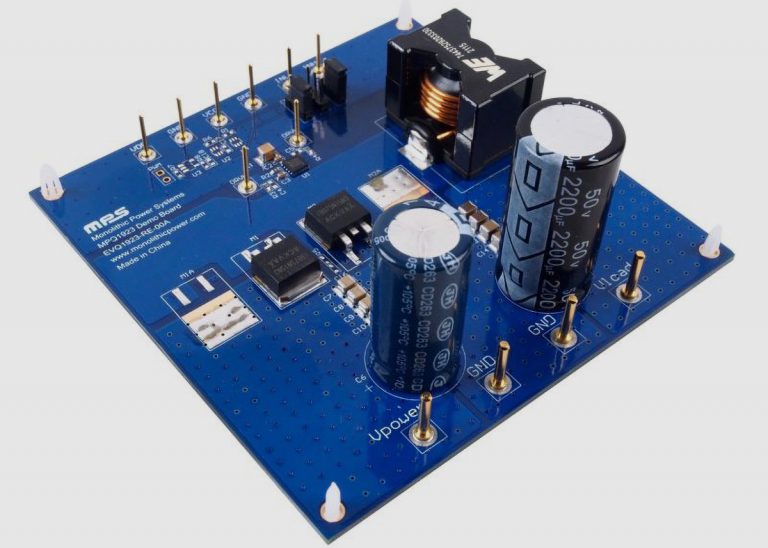

The EVQ1923-RE-00A evaluation board demonstrates the capabilities of the MPQ1923-AEC1, a high-frequency half-bridge gate driver that has a voltage rating of 100 V. The MPQ1923-AEC1 is intended for use in motor drivers, and in other power-control applications in telecoms servers, and avionics and industrial equipment.
The EVQ1923-RE-00A is configured as a buck converter.
