The STM32H757I-EVAL, a high-end development platform for the STM32H757XI microcontroller, provides access to all the STM32 peripherals for user applications. It includes an embedded STLINK-V3E debugger/programmer.
Expansion connectors provide an easy way to add specialized features, while ETM trace is supported through external probes.
The X-NUCLEO-SAFEA1 expansion board based on the STSAFE-A110 secure element can be used with any STM32 Nucleo development board. It is supplied with free X-CUBE-SAFEA1 and X-CUBE-SBSFU software packages.
The board includes an HE10 extension connector to mount additional STSAFE devices, and an Arduino UNO R3 connector.
This STM32 Nucleo-144 board provides an affordable and flexible way for developers to build prototypes based on the STM32H563 microcontroller.
The ST Zio connector, which extends ARDUINO® Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo-144 board does not require any separate probe as it integrates an ST-LINK debugger/programmer. The board comes with the comprehensive, free software libraries and examples available with the STM32Cube MCU Package.
Watch: Introducing the STM32H5 series
Watch: Security for the IoT

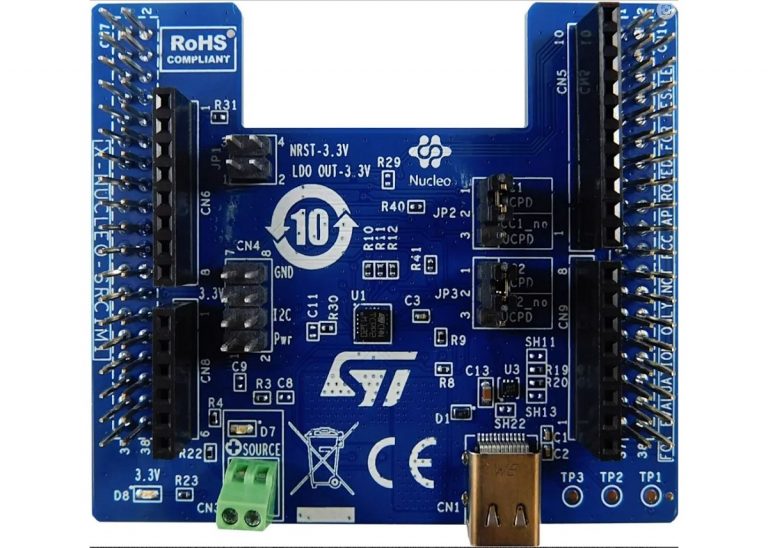

The X-NUCLEO-SRC1M1 expansion board allows evaluating the features of the TCPP02-M18 for the USB Type-C™ and the protections for VBUS and CC lines suitable for source applications.
Also available:
TCPP03 Dual Role protection
X-NUCLEO-DRP1M1
TCPP01 Sink protection
X-NUCLEO-SNK1M1
The STM32 Nucleo-144 board provides an affordable and flexible way for users to try the various combinations of performance and power consumption features provided by the STM32U5A5ZJ microcontroller.
The ST Zio connector, which extends Arduino® Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-144 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.
The STM32 Nucleo-144 board is supported by the comprehensive free STM32 software libraries and examples available with the STM32Cube MCU package.
Features of the kit include:
The STEVAL-MKI227KA evaluation kit is based on the LSM6DSV16X inertial module. It provides a Qvar electrostatic sensor, and three electrodes supporting finger swipe and generic functions. It is compatible with the STEVAL-MKI109V3 microcontroller motherboard.
It is possible to configure the LSM6DSV16X by changing the position of the jumper. The kit supports the entire LSM6DSV16X pinout, and comes ready-to-use with the required decoupling capacitors on the power-supply line.
The STEVAL-MKE00xAA can be plugged onto the STEVAL-MKI227A board. This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high performance 32-bit MCU functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface Unico-GUI, or dedicated software routines for customized applications.
It is also possible to plug the board onto the X-NUCLEO-IKS01A3 expansion board.
