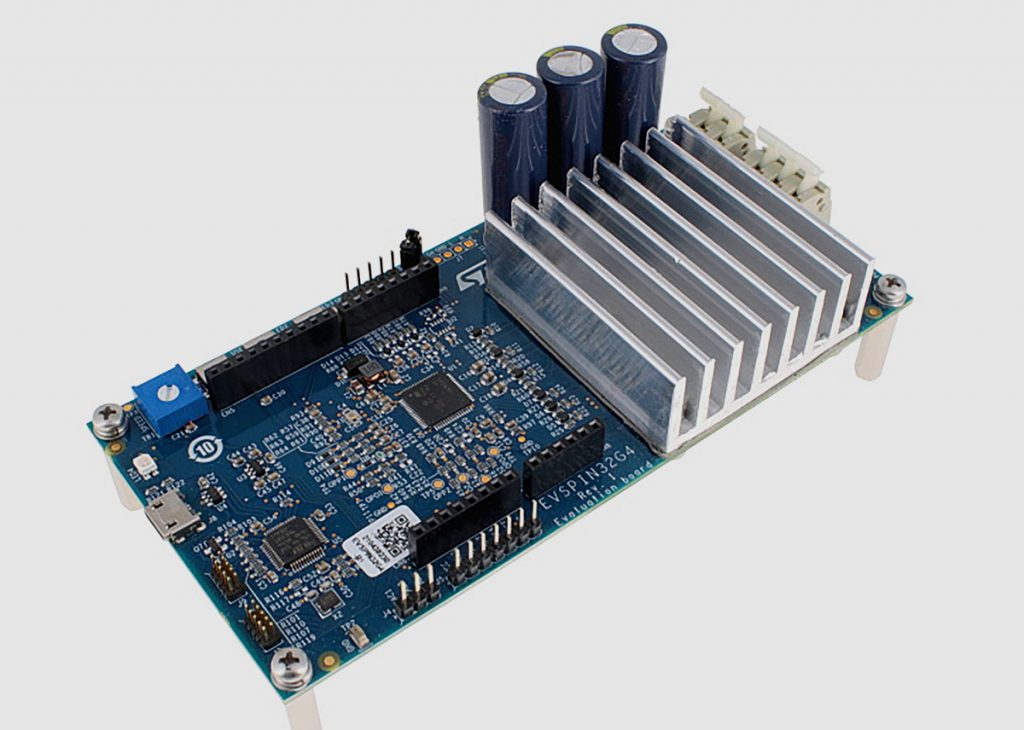

The EVSPIN32G4 and EVSPIN32G4NH are demonstration boards based on the STSPIN32G4 SiP and STL110N10F7 power MOSFETs. The boards support three- or single-shunt configurations, and can run both sensorless and sensored control algorithms.
The integrated operational amplifiers for current sensing, the drain-source voltage sensing at each power MOSFET, and comparators for over-current protection make this a fully integrated solution for motor control.
Thanks to the integrated voltage regulators, both the gate driver and control logic supplies can be generated from the motor supply without dedicated circuitry. The board is intended to drive three-phase brushless dc (BLDC) motors in applications such as power tools, e-Bikes, fans, and home appliances.
A connector enables the EVSPIN32G4 to be interfaced with expansion boards, such as MEMS sensors or Bluetooth® transceivers. The on-board ST-LINK/V2 programmer speeds up and simplifies the debugging of microcontroller firmware.
