STMicroelectronics

STMicroelectronics

The STM32C0116-DK Discovery kit from STMicroelectronics provides a convenient platform for exploring the features of the STM32C0 family of microcontrollers. The board includes an STM32C011F6 MCU in a 20-pin UFQFPN package, and an onboard ST-LINK/V2-1 to debug and program the MCU.

The STM32C0116-DK Discovery kit is operated by plugging it into a PC through a standard USB Type-A or USB Type-C®-to-Micro-B cable.

Key features of the board are:

  • User LED
  • Reset push-button
  • 5‑way joystick using a single ADC input pin
  • STM32 UFQFPN20-to-DIL20 module
  • Board connectors:
    • USB Micro-B
    • DIL20 socket
    • Dedicated LCD footprint
    • Grove (UART)
    • 2 x 10‑pin headers for MCU daughterboard
    • Extension connectors
  • Comprehensive free software libraries and examples available with the STM32Cube MCU package
  • Supports a wide choice of integrated development environments including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
STMicroelectronics

The X-NUCLEO-53L8A1 is an expansion board for any STM32 Nucleo board equipped with the Arduino R3 connectors. It provides a complete evaluation kit that allows you to learn, evaluate, and develop applications based on the VL53L8 series Time-of-Flight sensors.

STMicroelectronics

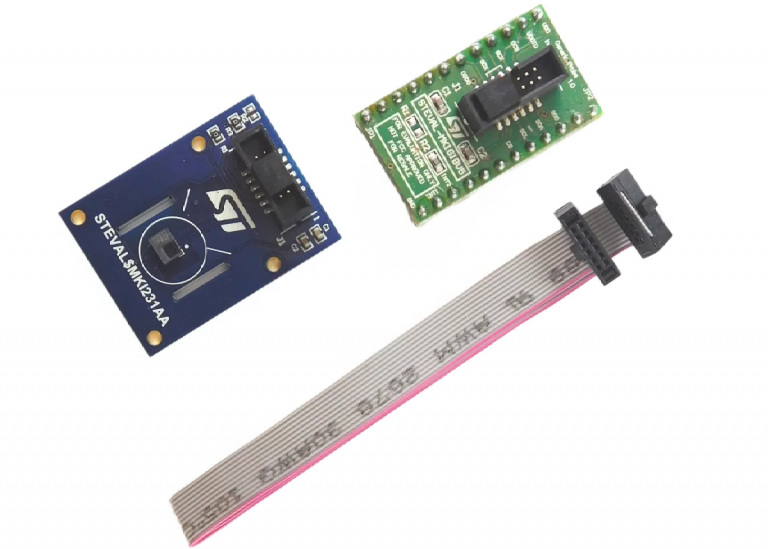

The STEVAL-MKI231KA demonstration board is a kit made up of an ad hoc PCB, mounting the STHS34PF80 low-power, high-sensitivity infrared sensor for presence and motion detection, which is connected through flat cable to a generic adapter board (STEVAL-MKIGIBV5) to make it compatible with the STEVAL-MKI109V3. An ad hoc plastic holder with a Fresnel lens (TMOS63-10) has been provided into the kit to verify best performances of the device.

STMicroelectronics

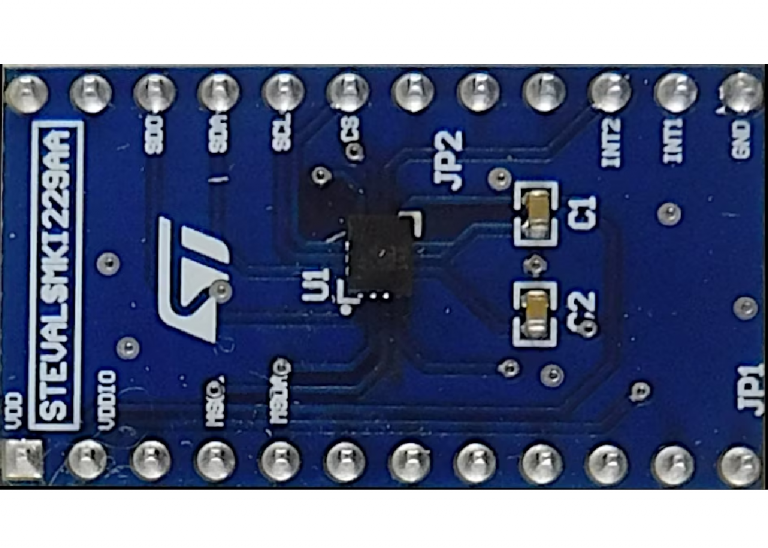

The STEVAL-MKI229A is an adapter board designed to facilitate the evaluation of MEMS devices in the LSM6DSO16IS product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
