Renesas

Renesas

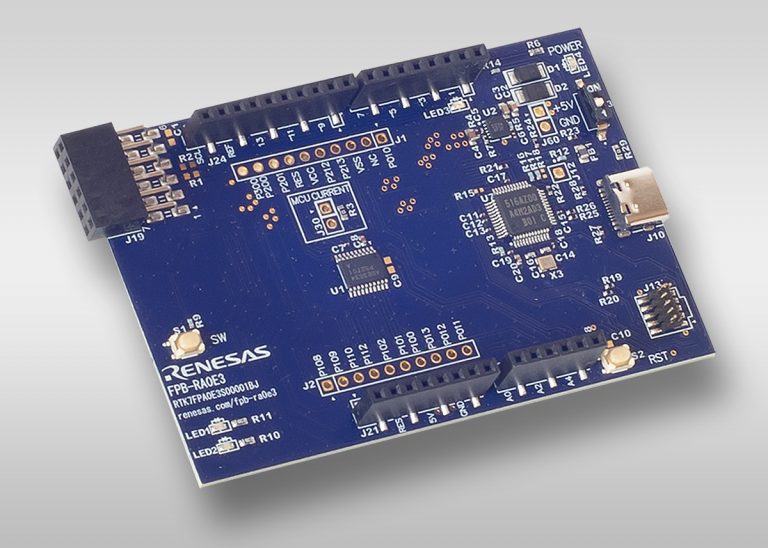

The RA0E3 Fast Prototyping Board features the RA0E3 MCU and provides a streamlined evaluation board for evaluating and developing prototypes across a wide range of applications. It includes a built‑in SEGGER J-Link™ emulator, enabling easy programming and debugging without requiring additional hardware.

Designed for flexibility, the board offers standard Arduino Uno and Pmod™ interfaces, plus through‑hole access to all MCU pins for expanded connectivity.

Sample software is available to help you quickly evaluate RA0E3 MCU functionality and integrate the board with wireless modules, sensor add‑ons, and other peripherals.

Renesas

Renesas offers the EK-RA8P1 evaluation kit to support development with the RA8P1 MCU. This kit includes an RA8P1 board with on-board J-Link debugger and connectors for Ethernet, USB, audio, and displays, plus a 7-inch capacitive-touch LCD and 5MP camera module for human-machine interface and vision demos.

The EK-RA8P1 comes pre-loaded with example projects showcasing the MCU 1GHz performance in voice recognition, image capture, and real-time analytics, allowing engineers to rapidly evaluate RA8P1 features using the Renesas FSP middleware and e²Studio IDE.

Renesas

The EK-RA6W1 comprehensive development kit features a main board and daughter card to provide easy software application development, with tools and resources to simplify the writing and testing of code.  Radio frequency (RF) testing is supported, allowing developers to measure and optimize performance, and to evaluate integration with cloud services.

A unique feature of this kit is the integrated power profiler circuit, which enables power consumption measurements during low-power sleep with precision down to 1µA. To support full software application development and system validation, the EK-RA6W1 offers multiple expansion options, including mikroBUS™, Pmod™, and Arduino UNO connectors. These standardized interfaces make it easy to add sensors, displays and more to EK-RA6W1.

Renesas

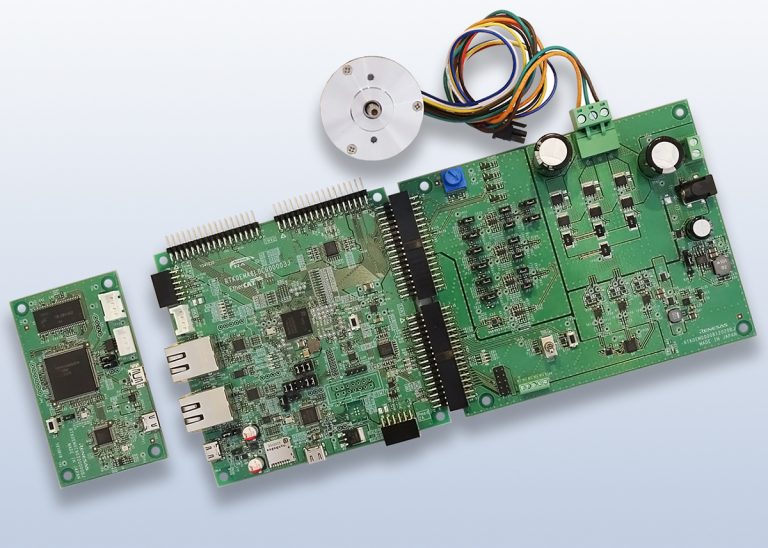

The MCK-RA8T2 development kit from Renesas is intended for evaluation of permanent-magnet synchronous motors (PMSMs) and other three-phase brushless loads driven by RA8T2 microcontrollers. The kit combines an RA8T2 CPU board (MCB-RA8T2), a low-voltage inverter board (MCI-LV-1), a PMSM, and accessories such as cables and stand-offs, so that engineers can exercise typical control schemes on a ready-made power stage.

An onboard debugger supports direct programming of the RA8T2 from a PC without an external probe. Connectors for Hall sensors, encoders and communication interfaces allow a range of feedback and host-control arrangements to be assessed. Sample code supports rapid bring-up, parameter tuning and waveform observation, helping developers to characterize the behavior of RA8T2-based control and networking operations in their intended industrial applications.

Key features include:

  • 1-, 2- and 3-shunt current sensing schemes for PMSM control
  • Integrated over-current and short-circuit protection
  • Supports Renesas Motor Workbench
  • Optional isolated communication via companion MC-COM board
  • Inverter board rated for operation up 48V
Renesas

The RTDTTP4200W066A 4.2kW bridgeless totem-pole power factor correction evaluation board enables highly efficient single-phase AC/DC conversion using the latest Renesas Gen IV Plus SuperGaN® FET. The TP65H030G4PWS is a diode-free GaN FET bridge with low reverse recovery charge.

Renesas

The RZ/G3E Evaluation Board Kit from Renesas, which consists of a system-on-module (SOM) board and a carrier board, is ideal for evaluating the features of the 64-bit RZ/G3E microprocessor. The module board is compatible with the SMARC v2.1 standard, and provides a reference design basis for module-based product development.

The SOM includes:

  • 4 Gbytes of LPDDR4x SDRAM
  • 16 Mbytes of QSPI Flash memory
  • 64 Gbytes of eMMC memory
  • Two MicroSD slots
  • Parallel interface
  • I3C connector
  • JTAG connector
  • 8-channel ADC
  • Current monitor
